Automatic Double-Flyer Armature
Winding Machine

Automatic Double-Flyer Armature<br> Winding Machine

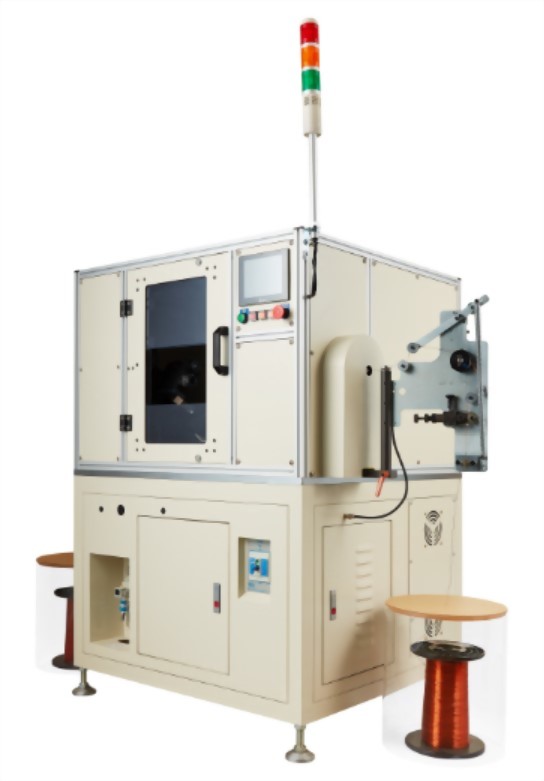

Product Name :
Automatic Double-Flyer Armature
Winding Machine
Model :
WA-154
    Enlargement



    Product Character

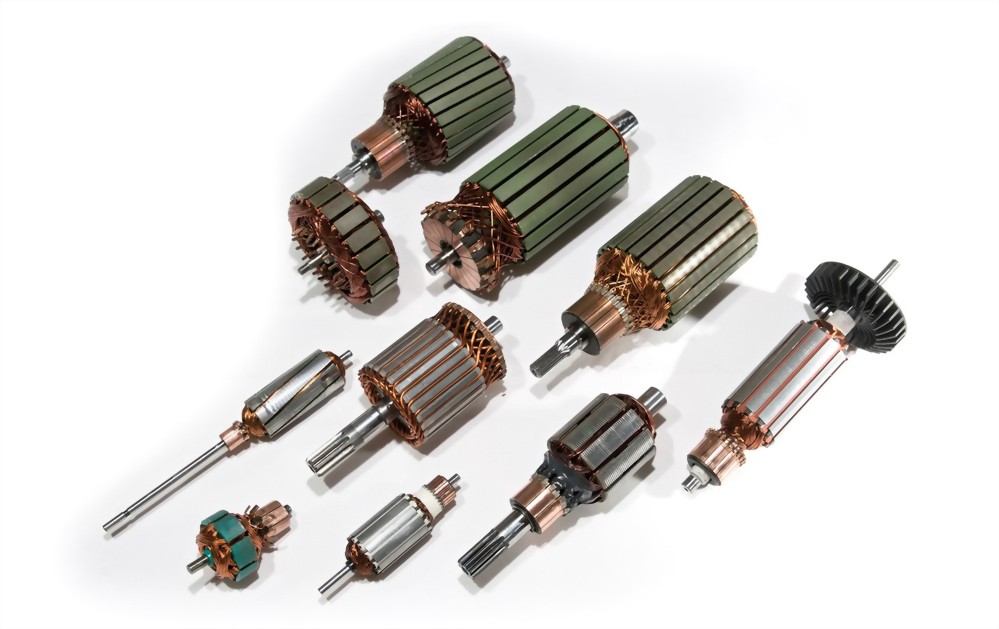

    SUMMARY:

    This machine is control by PLC. Through the Servo motor – rotating / fix position / hooking / winding. It is automatic cutting and suit for general armature--- hooking commutator. The operator just put the armature into the chuck mechanism. Then, push the start button. The machine will work automatically and no need to cut the wire.

    MAIN CONSTRUCTION:

    1. Winding axis(1KW, 2 sets of MITSUBISHI servo motors)
    2. Indexing axis(400W, 1 set of MITSUBISHI servo motor)PLC control system.
    3. Colorful operation interface and self checking & control system.
    4. Adjustable cutting , clipping device.
    5. Tension control system 1 set.

    FEATURES:

    1. The latest technology for high effective and fast changeover.
    2. 100 memory parameter setting for different type armature. Password setting can avoid the type setting change easily.
    3. Special winding and hooking can be set. Ex. different winding turn in each slot, hooking change.
    4. I/O test can be done from Touch screen. It is convenience for daily check.
    5. Electric powder brake is separated with 5 ranges of tension for different winding and hooking.
    6. WA-154 can arrange with fully automatic load/unload. Operator can handle several machines at same time. It increase production efficiency and save labor cost.
    7. Easy and fast fixture changing.

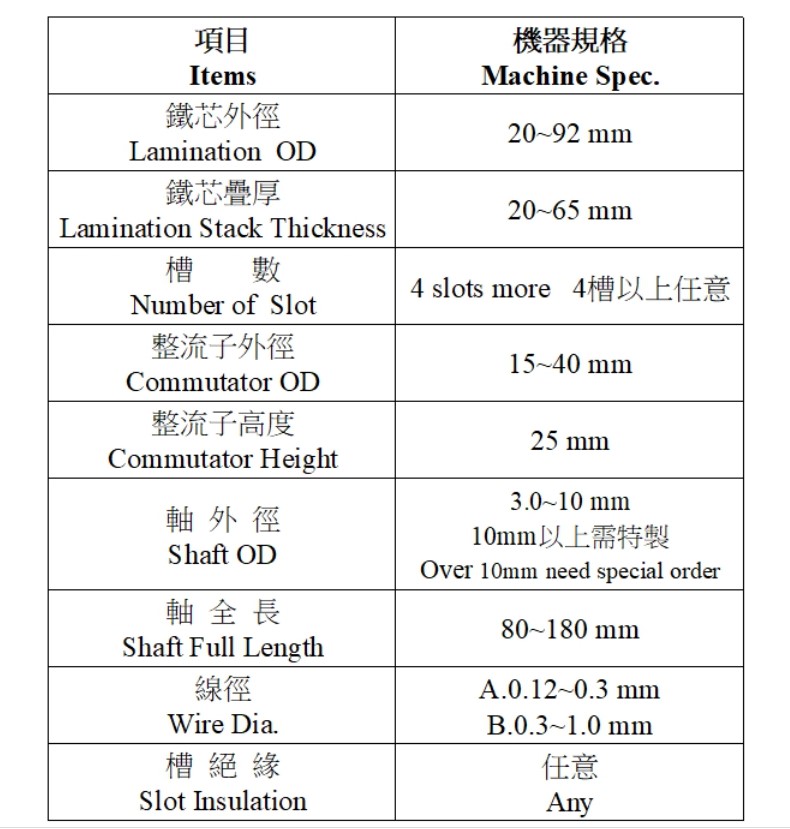

    SPECIFICATIONS:(The below is subject to change without notice.)

    Wire diameter a. 0.12~0.3㎜
    b. 0.3~1.0 ㎜
    Motor speed 3000 R.P.M.
    Armature diameter 20~90㎜ Controller PLC Control system
    Armature stack height 20~90㎜ Wire tension electric powder brake
    Commutator diameter 15~40㎜ Air pressure 4~6㎏/c㎡
    Numbers of slots 6~36slots Motor AC servo motor (3sets)
    Hooking way Alpha & U Type Power supply AC 3 ψ220V/380V 50/60HZ
    Direction CW or CCW Dimension 900L×1100W(加线架寬1740)×1500H
    Numbers of turns 0~9999 turns Weight 750KG
    Commutator type Hook
