Coil Winding Machine

Coil Winding Machine
Product Name :
Coil Winding Machine
Model :
WS-120
    Enlargement



    Product Character

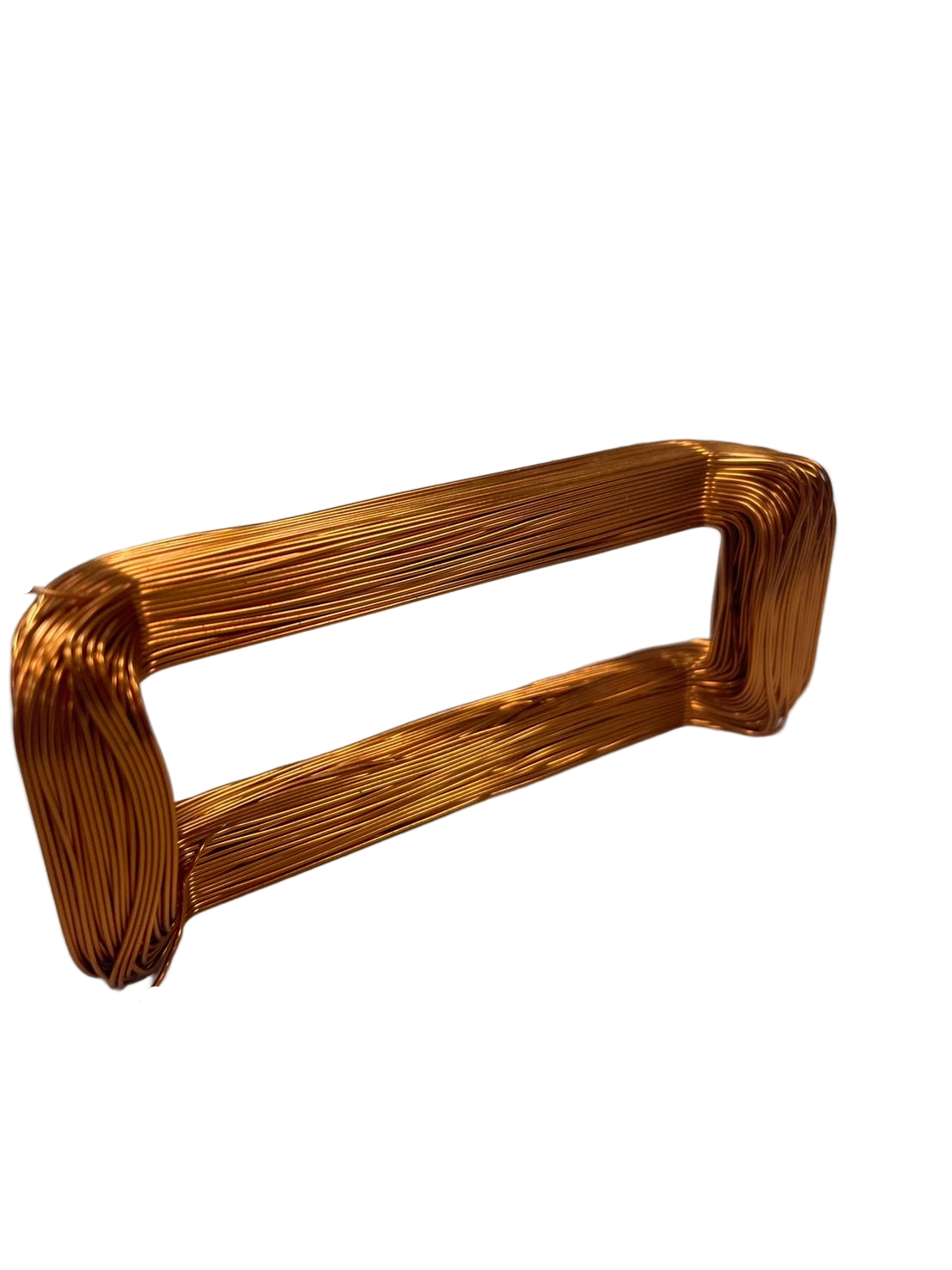

    This equipment is automatic coil winding machine in which simultaneously winding 24 coils at one time.
    Copper wire will be putted in tooling by operator → control by induction motor → winding → completion

    Features:
    • Speed of main spindle can be adjusted steplessly.
    • With memory system when power off.
    • High efficiency, stably, with QCT and suitable for mass production.
    SpecificationStandard
    Wire Diameter 0.1-1.2mm
    Coil Diamoeter 240mm MAX
    R.P.M 2400 R.PM. MAX
    Motor Induction Motor
    Program Memory 99 Sets
    Power Supply  1Ø220V±10% 50/60Hz
    Dimension 1170L x 1180W x 1100H
    Weight 250kg
